Photos of E5AX communications cable.
The serial cable is this one.
It is a serial extension cable from wiredco.com. Click on the photo to see the wiredco.com part. I cut off the female connector and stripped and tinned the Yellow, Orange, Brown and Red wires.
- Orange = Pin #4
- Red = Pin #3
- Yellow = Pin #5
- Brown = Pin #2

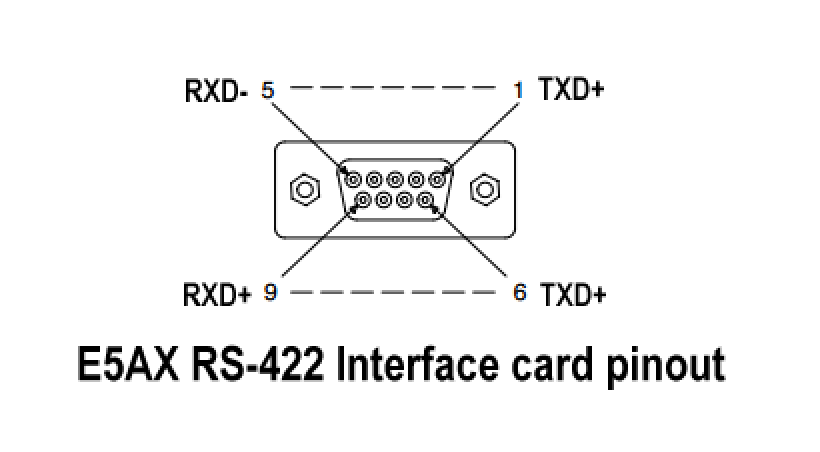

The above is admittedly cryptic. See the diagram below for how to connect to the Omron E5AX. The view is from the back of a MALE DB9 connector that will mate with the rs-422 card installed in the E5AX.

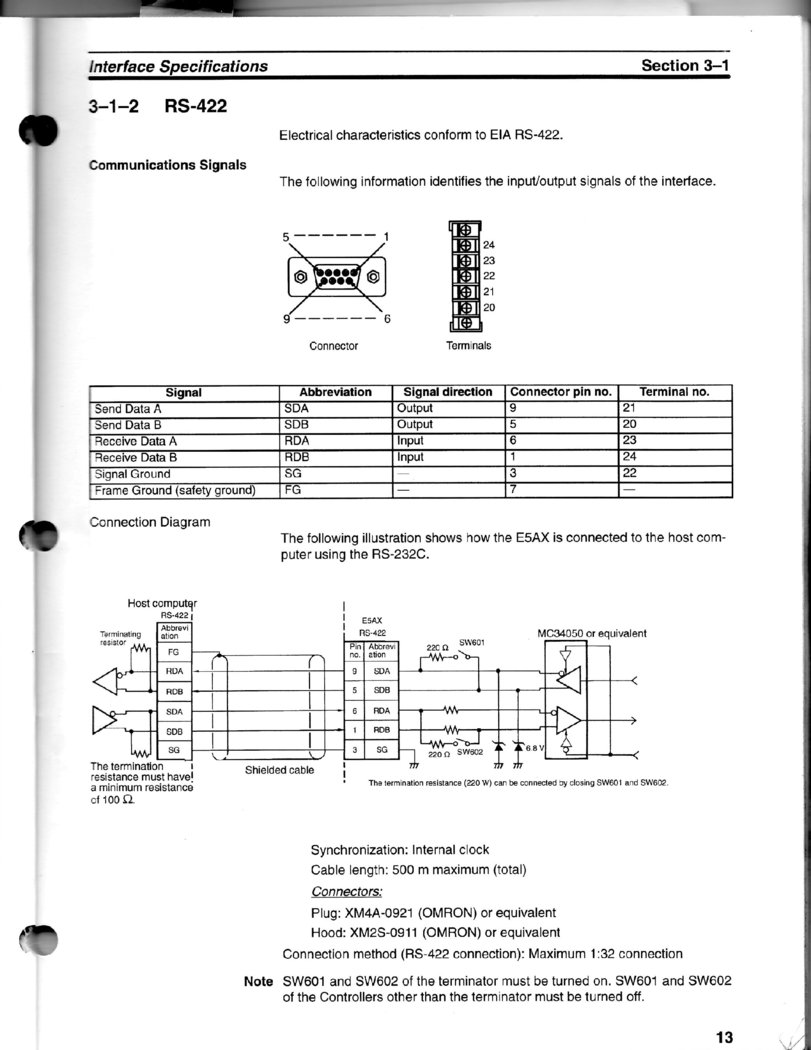

See photo below for which wires go to which terminal.
The USB to rs-422 converter is a Hexin HXSP-2108G which can be found on ebay. I buy then direct from a contact in Hong Kong.
|
